Coaxial Switches
　　

     ■　Coaxial Switches

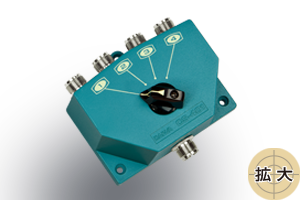

CS-401











■Feature
OUTPUT PORT ：4
FREQUENCY RANGE (UP TO) 500MHz
POWER RATING　：2.5kＷ(PEP), 1kW(CW)
CONNECTOR ：　M

This rotary switch has well-arranged input and output connectors,
making it easy to see the connection positions.
The unique switching mechanism provides highisolation between circuits.
The inactive antenna side is designed to always be grounded,
allowing for stable and efficient switching.

Coaxial Switches

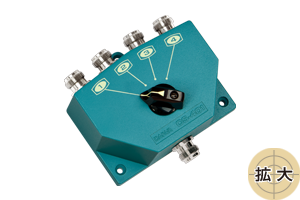

CS-401G











■Feature
OUTPUT PORT ：4
FREQUENCY RANGE (UP TO) 1300MHz
POWER RATING　：2.5kＷ(PEP), 1kW(CW)
CONNECTOR ：　N

This rotary switch has well-arranged input and output connectors,
making it easy to see the connection positions.
The unique switching mechanism provides highisolation between circuits.
The inactive antenna side is designed to always be grounded,
allowing for stable and efficient switching.

Coaxial Switches

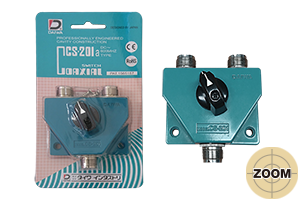

CS-201a











■Feature
OUTPUT PORT ：2
FREQUENCY RANGE (UP TO) 600MHz
POWER RATING　：1.5kＷ
CONNECTOR ：　M

The CS Series ARE a　high quality coaxial switch with excellent high
frequency RF characteristics.
It is built in a heavy duty die-cast metal.
PAT.1565157 Unused circuits are automatically grounded and cavity
construction.

Coaxial Switches

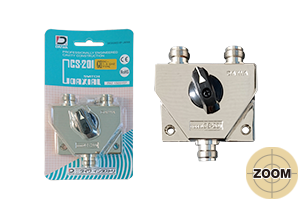

CS-201GⅡ











■Feature
OUTPUT PORT ：2
FREQUENCY RANGE (UP TO) 2000MHz
POWER RATING　：1.5kＷ
CONNECTOR ：　N

The CS Series ARE a　high quality coaxial switch with excellent high
frequency RF characteristics.
It is built in a heavy duty die-cast metal.
PAT.1565157 Unused circuits are automatically grounded and cavity
construction.

Coaxial Switches
